Configure a Rover like Yahboom or SCUTTLE
This tutorial will guide you through configuring a rover.

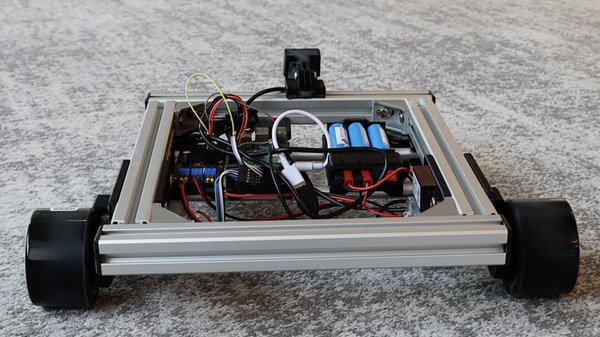

If you are using a SCUTTLE, a Yahboom rover, or a different rover, this tutorial covers instructions for your rover model.
Viam Rover
If you are using a Viam Rover, use the Viam Rover tutorial fragment instead.
Requirements
- A running an instance of
viam-server. See our Installation Guide for instructions. - A rover like the SCUTTLE robot or the Yahboom 4WD Smart Robot.
Make sure your rover is assembled before starting this tutorial.
Start configuring your robot
Add a new machine on Viam.
On the machine’s page, follow the setup instructions to install viam-server on the computer you’re using for your project.
Wait until your machine has successfully connected to Viam.
Once connected, navigate to the machine’s CONFIGURE tab.
The configuration for each rover is different depending on which components your rover is composed of. In the following, you can see two popular examples with components that are present on most rovers:
Configure the board

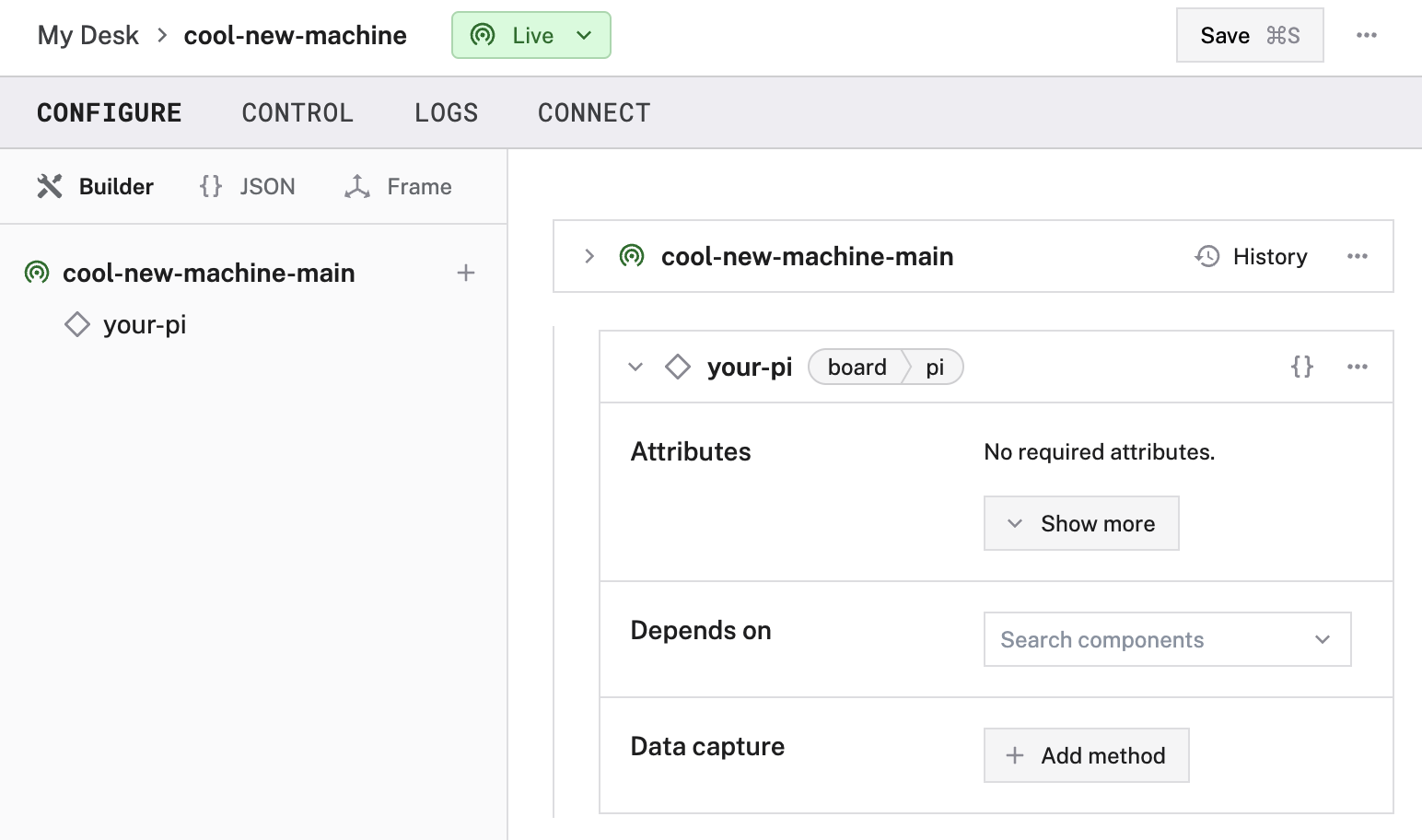

The first component you will add is the board which represents the Raspberry Pi to which the other components are wired.
Click the + icon next to your machine part in the left-hand menu and select Blocks.
Search for raspberry pi, then select the raspberry-pi/rpi block.
Enter local as the name and click Add to machine.
You can use a different name but will then need to adjust the name in the following steps to the name you choose.
You don’t need to add any attributes for your board.
Configuring the motors and encoders
Configure the encoders
Note
Not all rovers require the configuration of encoders. If your motors work without encoders, skip to configuring your motors.
Configure the left and right encoders as follows:
Start with the right encoder:
Right encoder
Click the + icon next to your machine part in the left-hand menu and select Blocks.
Search for as5048, then select the ams/as5048 block.
Enter renc as the name and click Add to machine.
In the encoder card’s attributes editor, enter the following attributes:
{
"connection_type": "i2c",
"i2c_attributes": {
"i2c_bus": "1",
"i2c_addr": 65
}
}
Left encoder
Click the + icon next to your machine part in the left-hand menu and select Blocks.
Search for as5048, then select the ams/as5048 block.
Enter lenc as the name for your encoder and click Add to machine.
In the encoder card’s attributes editor, enter the following attributes:
{
"connection_type": "i2c",
"i2c_attributes": {
"i2c_bus": "1",
"i2c_addr": 64
}
}
Add the following JSON objects to the components array:
{
"name": "lenc",
"api": "rdk:component:encoder",
"model": "viam:ams:as5048",
"attributes": {
"connection_type": "i2c",
"i2c_attributes": {
"i2c_bus": "1",
"i2c_addr": 64
}
}
},
{
"name": "renc",
"api": "rdk:component:encoder",
"model": "viam:ams:as5048",
"attributes": {
"connection_type": "i2c",
"i2c_attributes": {
"i2c_bus": "1",
"i2c_addr": 65
}
}
}
Follow the instructions for the model of encoder your rover uses to configure your encoders and configure at least a right and a left encoder.
Configure the motors
Start with the right motor:
Right motor
Click the + icon next to your machine part in the left-hand menu and select Blocks.
Search for gpio, then select the motor/gpio block.
Enter right as the name or use the suggested name for your motor and click Add to machine.
In the motor card’s attributes editor, enter the following attributes.
They set local, the Raspberry Pi the motor is wired to, as the board, use the renc encoder with ticks_per_rotation set to 1 (the AS5048 is an absolute encoder that reports whole rotations), and describe how the motor is wired to the Pi in In1/In2 mode.
Leave the pwm (pulse-width modulation) pin blank, because this specific motor driver’s configuration does not require a separate PWM pin.
{
"board": "local",
"pins": {
"a": "16",
"b": "15",
"pwm": ""
},
"encoder": "renc",
"ticks_per_rotation": 1
}
Left motor
Click the + icon next to your machine part in the left-hand menu and select Blocks.
Search for gpio, then select the motor/gpio block.
Enter left as the name or use the suggested name for your motor and click Add to machine.
In the motor card’s attributes editor, enter the following attributes, which use the lenc encoder:
{
"board": "local",
"pins": {
"a": "12",
"b": "11",
"pwm": ""
},
"encoder": "lenc",
"ticks_per_rotation": 1
}
Add the following JSON objects to the components array:
{
"name": "right",
"model": "gpio",
"api": "rdk:component:motor",
"attributes": {
"pins": {
"a": "16",
"b": "15",
"pwm": "",
"dir": ""
},
"board": "local",
"dir_flip": false,
"encoder": "renc",
"ticks_per_rotation": 1
},
"depends_on": [ "local" ]
},
{
"name": "left",
"model": "gpio",
"api": "rdk:component:motor",
"attributes": {
"pins": {
"a": "12",
"b": "11",
"pwm": ""
},
"board": "local",
"dir_flip": false,
"encoder": "lenc",
"ticks_per_rotation": 1
},
"depends_on": [ "local" ]
}
Since both right (and left) side motors of the Yahboom rover are wired together to a single motor driver, you configure the right (and left) side motors as a single motor component.
Start with the right set of wheels.
Right motor
Click the + icon next to your machine part in the left-hand menu and select Blocks.
Search for gpio, then select the motor/gpio block.
Enter right as the name or use the suggested name for your motor and click Add to machine.
In the motor card’s attributes editor, enter the following attributes.
They set local as the board the motor driver is wired to and describe how the motor is wired to the board in the A/B/PWM mode this motor driver uses.
If you followed the setup instructions for putting together your Yahboom rover correctly, the pins are as follows.
Leave out the dir pin, because Yahboom’s motor driver uses an a/b/pwm configuration.
{
"board": "local",
"pins": {
"a": "35",
"b": "37",
"pwm": "33"
},
"max_rpm": 300
}
You can ignore the other optional attributes.
Left motor
Click the + icon next to your machine part in the left-hand menu and select Blocks.
Search for gpio, then select the motor/gpio block.
Enter left as the name or use the suggested name for your motor and click Add to machine.
In the motor card’s attributes editor, enter the following attributes.
They set local as the board the motor driver is wired to and describe how the motor is wired to the board in the A/B/PWM mode this motor driver uses.
If you followed the setup instructions for putting together your Yahboom rover correctly, the pins are as follows.
Leave out the dir pin, because Yahboom’s motor driver uses an a/b/pwm configuration.
{
"board": "local",
"pins": {
"a": "38",
"b": "40",
"pwm": "36"
},
"max_rpm": 300
}
You can ignore the other optional attributes.
Follow the instructions for the model of motor your rover uses to configure your motors and configure at least a right and a left motor.
Test the motor configuration
Caution
Ensure the rover has sufficient space to drive around without hitting anyone or anything.
If you don’t have enough space, consider holding your robot off the ground so it cannot collide with anything unexpected.
Now that you have configured your motors, you can actuate them. Make sure your machine is turned on. Navigate to the Control tab.
You’ll see a panel for each configured component.

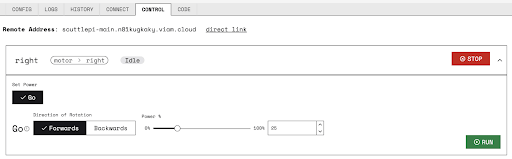

Click on the panel for the right motor.
Try changing the motor’s power level and click Run.
Caution
Be careful when using your motors! Start with the power level set to 20% and increase it incrementally (about 10% each time) until the wheel rotates at a reasonable speed, clicking Run at each increment. If you hear a “whining” sound from the motor, the power level is not high enough to turn the armature. If this happens, increase the power level by 10% increments until it starts to turn.
If your wheel turns in reverse when it should turn forward, add "dir_flip": true to the motor’s attributes.
There, you should see a panel for the right motor: you can use this panel to set the motor’s power level.
(Optional) Configure the camera
Optionally, add a camera to your rover.
Click the + icon next to your machine part in the left-hand menu and select Blocks.
Search for webcam, then select the camera/webcam block.
Enter a name or use the suggested name for your camera and click Add to machine.
Leave the camera’s attributes empty and the camera will use the default video path for your machine.
If this doesn’t work when you test your camera later, find your camera’s video path and set it as video_path in the camera card’s attributes editor.
{
"name": "Webcam",
"model": "webcam",
"api": "rdk:component:camera",
"attributes": {
"video_path": "<PATH_TO_YOUR_WEBCAM>"
}
}
If your rover has its camera mounted on a pair of servos, like the Yahboom rover, you can use these to control the pan and tilt of the camera.
Click the + icon next to your machine part in the left-hand menu and select Blocks.
Search for rpi-servo, then select the raspberry-pi/rpi-servo block.
Enter pan as the name and click Add to machine.
Set Depends On to local, and pin to the pin the servo is wired to (23 for the Yahboom rover).
Finally, add the tilt servo as well.
Click the + icon next to your machine part in the left-hand menu and select Blocks.
Search for rpi-servo, then select the raspberry-pi/rpi-servo block.
Enter tilt as the name and click Add to machine.
Set Depends On to local, and pin to the pin the servo is wired to (21 for the Yahboom rover).
Test the camera stream

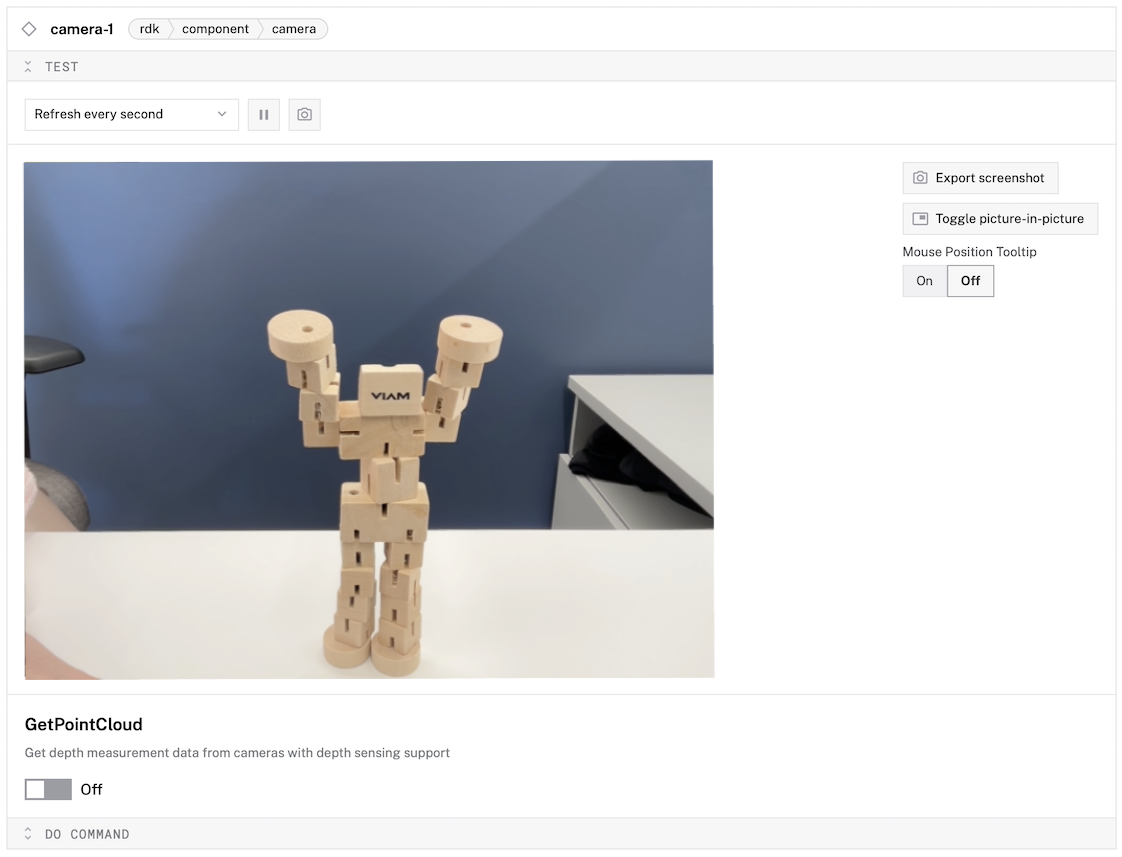

Once your camera is configured and connected, expand the TEST panel on the CONFIGURE or CONTROL tabs. If everything is configured correctly, you will see the live feed from your camera.
Configure the base
Next, configure the base component, which describes the geometry of your chassis and wheels so that the software can calculate how to steer the rover in a coordinated way. Configuring a base component also provides you with a nice UI for moving the rover around.
Note
Viam supports most rovers with built-in models like the wheeled base.
If your rover is not supported out of the box, follow the Create a Modular Resource to Control a Rover tutorial to create a model for your rover or mobile robot.
Click the + icon next to your machine part in the left-hand menu and select Blocks.
Search for wheeled, then select the base/wheeled block.
Enter a name or use the suggested name for your base and click Add to machine.
In the base card’s attributes editor, enter the motors attached to the base as your right and left motors, the wheel circumference, and the width between the midpoints of the wheels:
{
"right": ["right"],
"left": ["left"],
"wheel_circumference_mm": 250,
"width_mm": 400
}
In the base card’s attributes editor, enter the motors attached to the base as your right and left motors, the wheel circumference, and the width between the midpoints of the wheels:
{
"right": ["right"],
"left": ["left"],
"wheel_circumference_mm": 220,
"width_mm": 150
}
In the base card’s attributes editor, set right and left to lists of the motors attached to the base.
Measure the wheel circumference in mm and set it as wheel_circumference_mm.
Measure the width in mm between the midpoints of the wheels and set it as width_mm.
{
"components": [
{
"attributes": {
"board": "local",
"pins": {
"pwm": "",
"a": "16",
"b": "15"
}
},
"model": "gpio",
"name": "right",
"api": "rdk:component:motor"
},
{
"attributes": {
"board": "local",
"pins": {
"pwm": "",
"a": "12",
"b": "11"
}
},
"model": "gpio",
"name": "left",
"api": "rdk:component:motor"
},
{
"attributes": {
"left": ["left"],
"right": ["right"],
"wheel_circumference_mm": 250,
"width_mm": 400
},
"model": "wheeled",
"name": "your-wheeled-base",
"api": "rdk:component:base"
}
]
}
Save the config by clicking Save at the top right of the page.
Test the base

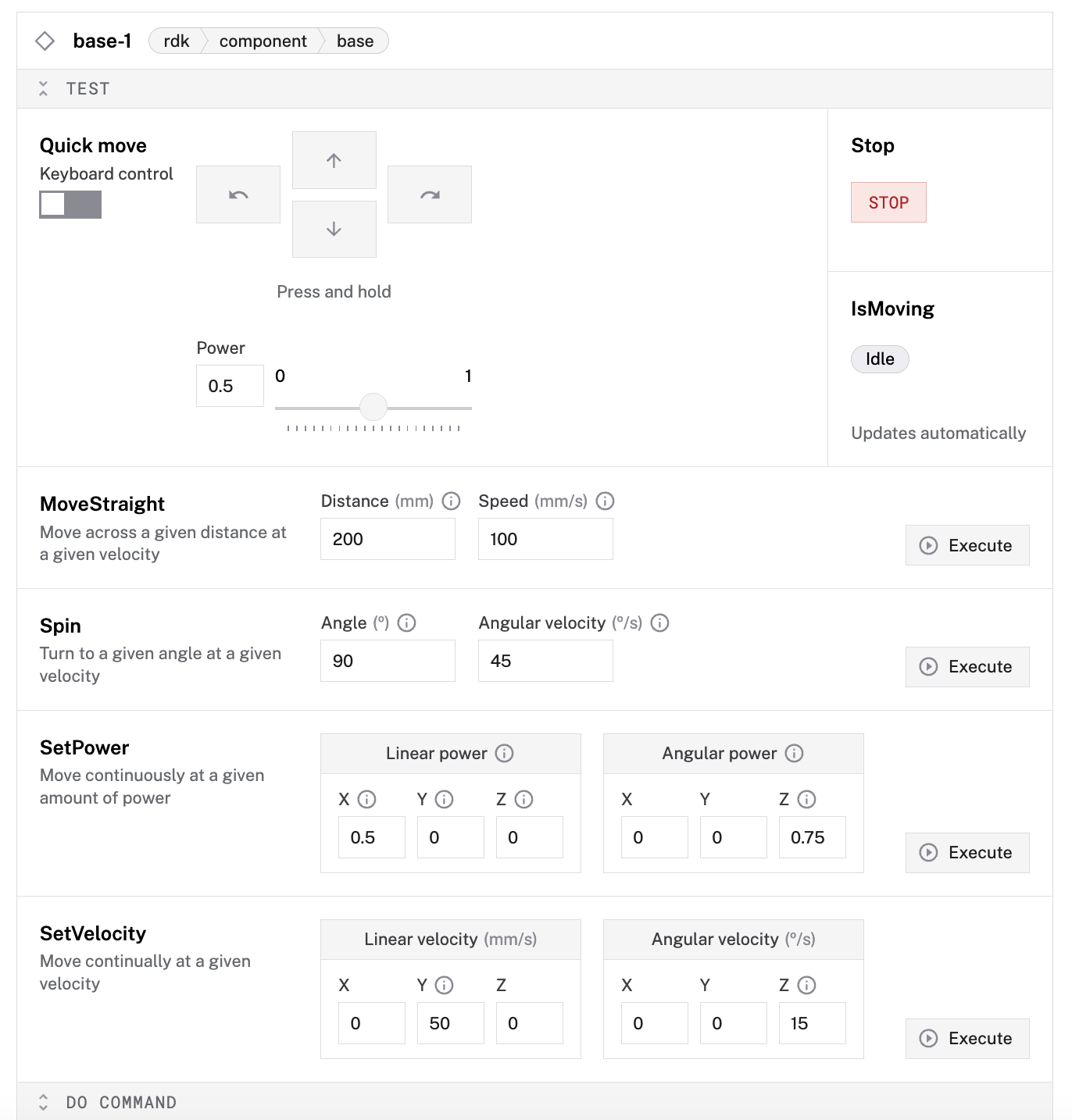

After you configure the base, open the base’s TEST panel on the CONFIGURE or CONTROL tabs to view the controls to enable keyboard or discrete control over your machine’s movement.
In the Quick move section, you can toggle the keyboard control to active. With the Keyboard toggle active, use W and S to go forward and back, and A and D to arc and spin.
Try driving your base around using the WASD keyboard controls.
Caution
Ensure that your robot has sufficient space to drive around without hitting anyone or anything.
You can also move straight, spin, set power or set velocity from the base panel.
If you do not see the base card in the TEST panel, check the LOGS tab for possible setup or configuration errors.
Next steps
Now that you have fully configured your SCUTTLE robot, you can drive it around and view its camera stream.
To take things to the next level, check out one of the following tutorials:
